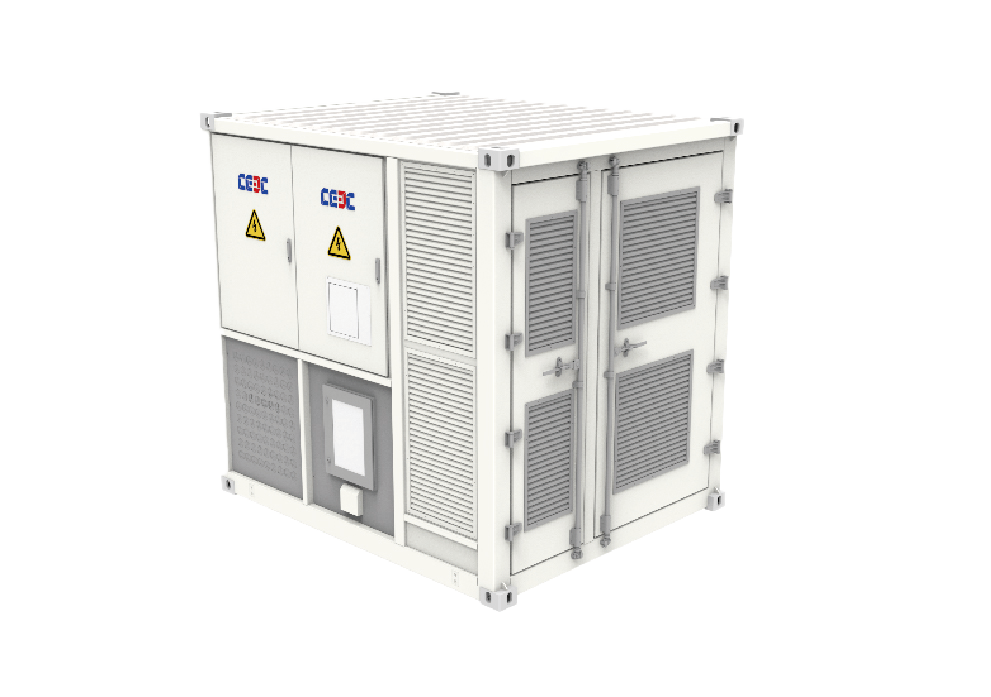

1MWH LIQUID COOLED C & I ENERGY STORAGE SYSTEM

'E-FLEXBOX'

1MWH Liquid Cooled C & I Energy Storage System

All-in-one fire detection, efficient and safe

Highly integrated, smaller footprint and convenient maintenance

Modular design, flexible configuration and higher utilization rate

Anti-backflow function and AI warning

System Architecture

Solution

MONITORING SYSTEM

IMS

C&I ENERGY STORAGE SYSTEM

ELECTRICAL LOAD

STEP-UP TRANSFORMER

POWER GRID

COMMUNICATION LINE

AC LINE

Specifications

DC SIDE	Cell Type	LFP 3.2V / 314Ah
	System Battery Configuration	260S4P
	Nominal Capacity	1045kWh
	Nominal Voltage	832V
AC SIDE	Nominal Power	250 / 500kW
	Nominal Voltage	400V
	Nominal Frequency	50 / 60Hz
PV INPUT (Optional)	Max PV Input Voltage	1000V
	Max PV Power	300 / 360kW
	MPPT Quantity	5 / 6
	MPPT Voltage Range	255–850V
SYSTEM PARAMETER	Dimensions (W * H * D)	2991 × 2896 × 2438mm
	Weight	~13.1t
	Fire Suppression System	Aerosol & Sprinkler
	Communication Interfaces	CAN, RS485, RJ45
	Communication Protocol	CAN2.0B, IEC61850, Modbus TCP, Modbus RTU
	Standard	IEC 62619 IEC 63056 IEC 62477-1 IEC 62040-1 IEC/UL 60730-1 UL 9540A UN38.3 UN3536
	Application Scenarios	Smart Mining Areas, Isolated Islands, Urban Rooftops, Inland Farms, Industrial And Commercial Areas
