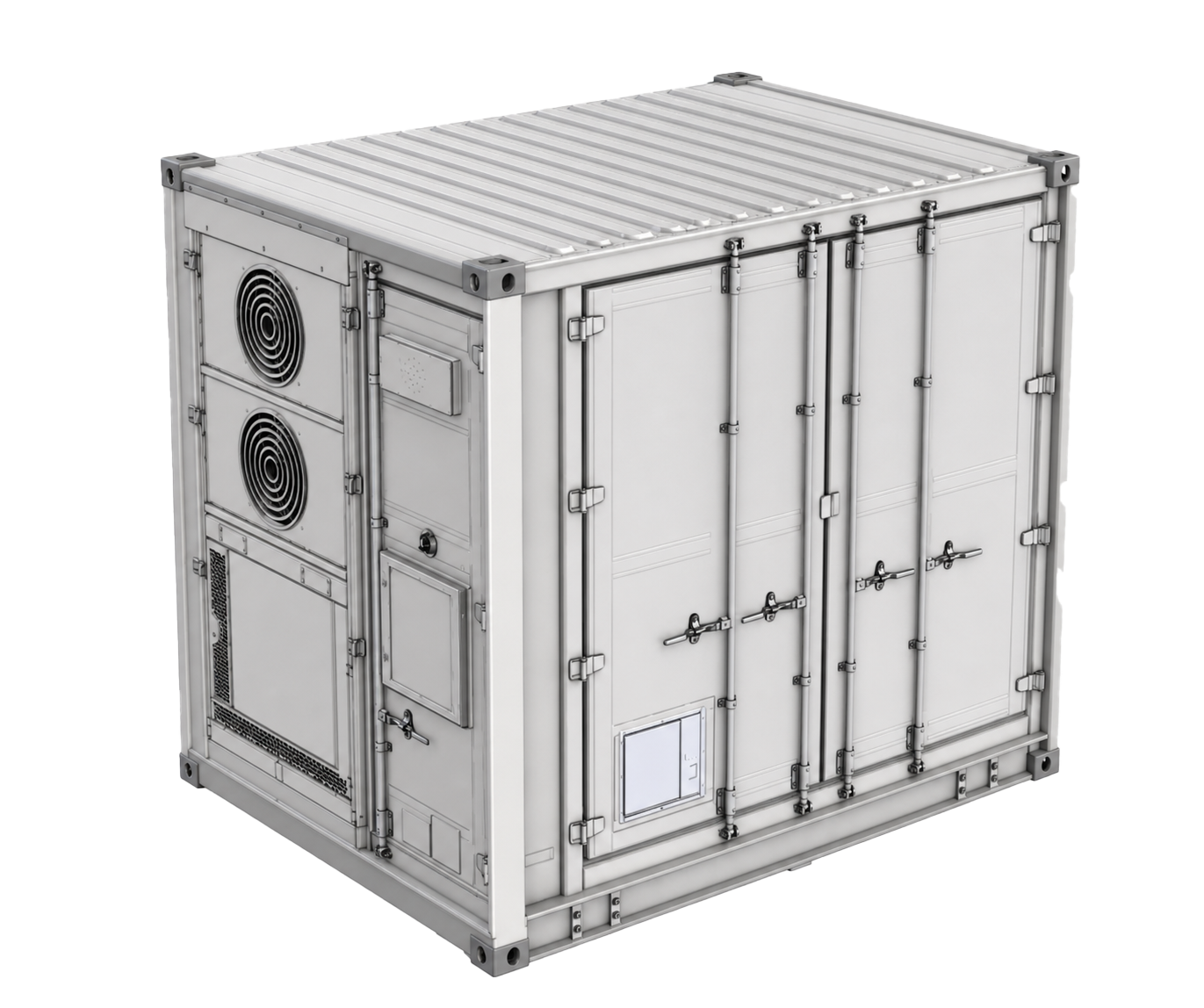

MERCURY MIN
2MWh Liquid Cooled Energy Storage System
MERCURY MIN is a grid-adaptable, safety-centred energy storage system designed for complex applications such as grid-forming, black start, and off-grid operation. With compact, modular architecture, MERCURY MIN enables lower installation and operating costs while ensuring rapid deployment across diverse environments.
Certified to UL, IEC, AS and UN standards, MERCURY MIN integrates advanced thermal control and multi-layer protection to deliver reliable performance and long-term safety in utility-scale and distributed projects.
Why Mercury Min?
Three core advantages delivering flexible deployment, cost-efficiency, and reliable performance across diverse energy storage scenarios.
Flexible System Applications
Supports grid-forming, black start, and off-grid operations. Compatible with industrial sites, complex grids, islanded systems and hybrid renewables.
Cost-Efficient
Integrated design reduces system costs and simplifies deployment. Optimised for rapid installation and space-constrained sites.
Reliable & Serviceable
Modular layout enables efficient maintenance and fault isolation. Robust safety systems ensure stable operation in varied environments.
Typical Application Scenario
Plant Control System
System
TERMINAL
Storage System
Discharging
Boost Integrated Skid
Substation
Connection)
Mercury Min Specifications
| DC Configuration | |
|---|---|
| Cell Type | LFP 3.2 V/314 Ah |
| Battery Configuration | 5P 416S |
| Nominal Capacity | 2089 kWh |
| Nominal Voltage Range | 1081.6 – 1497.6 V (@2.6–3.6V) |
| DC Side System Efficiency | >95% |
| Rate Duration of Discharge | 4h |
| Structure | |
| Dimension (D×H×W) | 2438mm × 2896mm × 3240mm |
| Weight | ≤ 21000 kg |
| Ingress Protection (IP) Rating | IP54 |
| Anti-Corrosion Degree | C4 |
| Seismic Level | IEEE 693 high seismic level qualification |
| Snow Load | 1.44 kPa |
| Wind Load | 57.7 m/s |
| Operation Parameter | |
| Operation Ambient Temperature Range | -30°C ~ +50°C (>45°C Derating) |
| Relative Humidity | ≤ 100% RH (non-condensing) |
| Maximum Operation Altitude | 3000m |
| Communication | |
| Communication Interfaces | Ethernet |
| Communication Protocol | Modbus-TCP, IEC 104, IEC 61850 |
| Temperature Control Method | High-efficiency Liquid Cooling |
| Regulatory | |
| Standard Compliance | IEC 62933-5-2 IEC 61000 IEC 62619 IEC 63056 IEC 62477-1 JETGR0004-1-2.1 JETGR0005-1-1.0 JEM 1505 JEAC9701-2024 JC-STAR EN50549 |
| Fire Suppression System | Fire control alarm panel, smoke and heat detectors, alarm bell, horn strobe, gas detector, ventilation system (compliant with NFPA 69), dry pipes with sprinklers, aerosol. |
